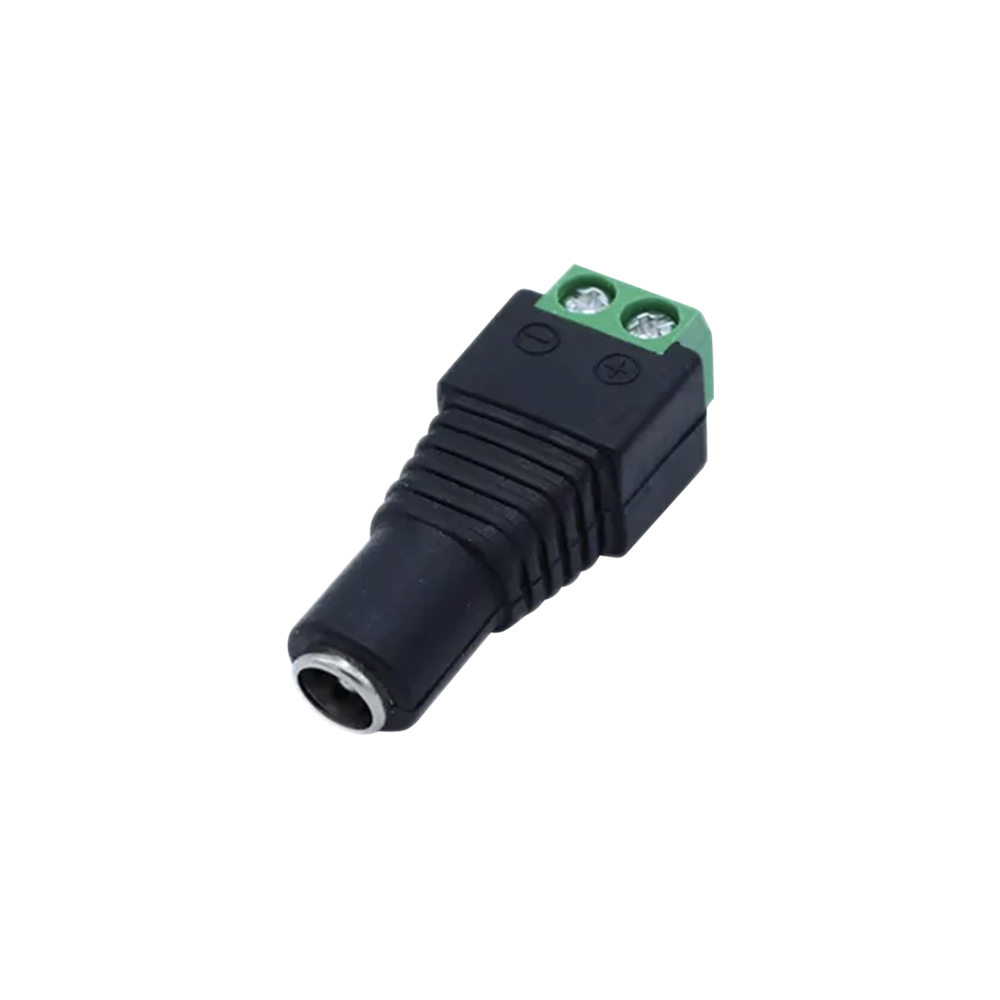

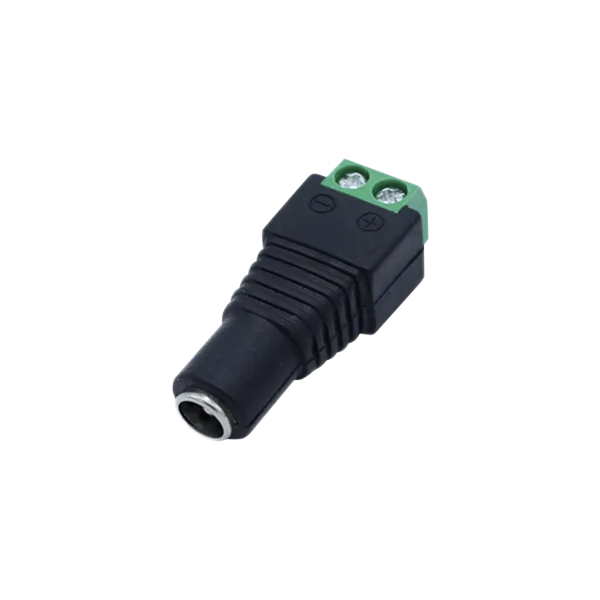

DC socket with female connector for the fast installation of single-color LED strips with a voltage of max. 48V. This is a convenient solution for quick connection of the LED strip to the power source. The advantage is the easy installation - the wires coming out of the strip just need to be properly connected to the screw terminals.
By using a DC socket, it is possible to connect the LED strip to a device terminated with a DC plug.
The internal dimensions are 5.5/2.1 mm.
| General information: | |
|---|---|
| Type of accessory/spare part: | Łącznik |
| Accessory: | tak |
| Voltage [V]: | 0-48 |
| Type: | Gniazdo DC żeńskie |
| Number of pins: | 2 |
| Current max. [A]: | 1.28 |
| Compatible with LED strips - width [mm]: | 8, 10 |
| Width [mm]: | 13 |
| Height/depth [mm]: | 11 |
| Length [mm]: | 37 |
