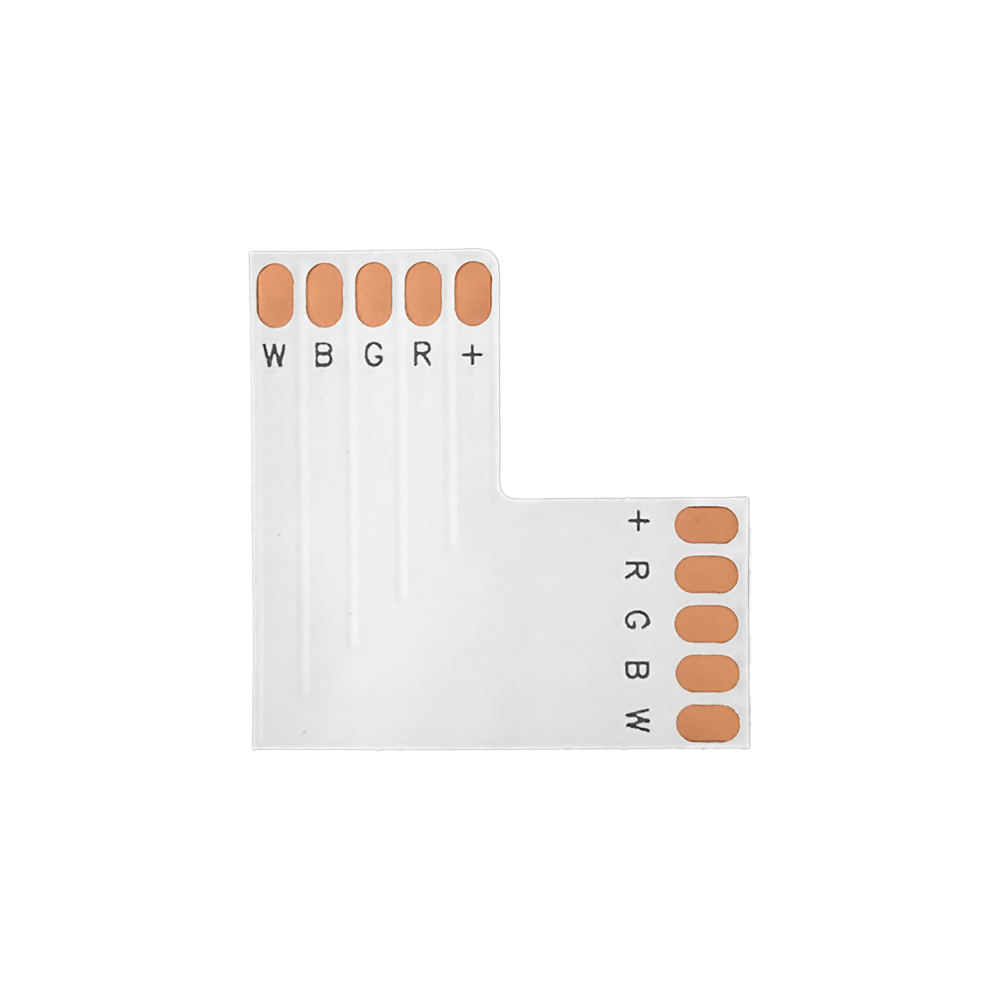

Angle LED connector "L" for 12 mm wide LED strips with max. power 48V. This is a convenient solution for connecting RGBW LED strips (white and colored light) at 90°. Thanks to its small size, it works well for connecting strips in aluminium profiles - with the need for soldering.
The model allows the use of additional compression connectors - in which case there is no need to solder the connector to the strip.
Dimensions 24 x 24mm.
| General information: | |
|---|---|
| Type of accessory/spare part: | Łącznik |
| Accessory: | tak |
| Voltage [V]: | 0-48 |
| Type: | Złączka kątowa "L" |
| Number of pins: | 5 |
| Current max. [A]: | 1.28 |
| Compatible with LED strips - width [mm]: | 12 |
| Width [mm]: | 24 |
| Height/depth [mm]: | 0.2 |
| Length [mm]: | 24 |
