Connectors and distributors

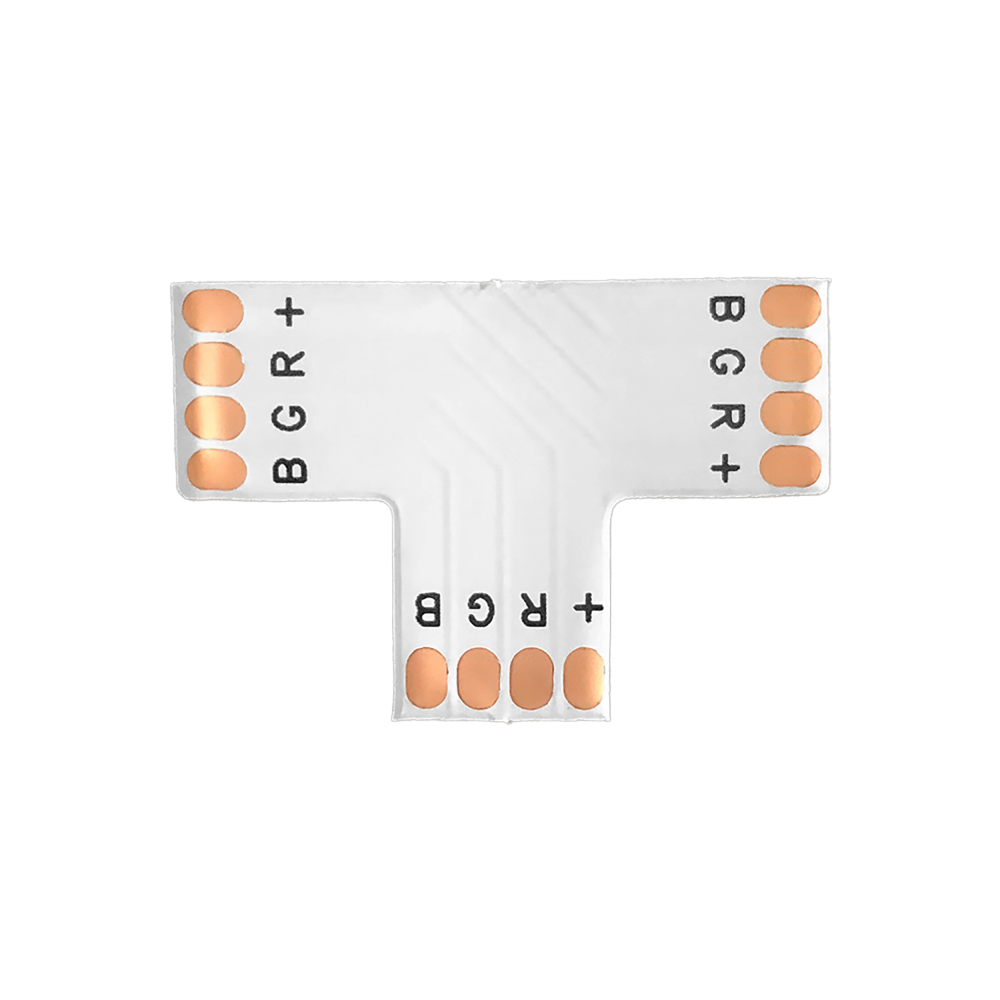

LED connector type "T" for 10 mm wide LED strips with max. power 48V. This solution offers the possibility of combining three sections of RGB (colored) LED strips. Thanks to its small size, it works well for connecting strips in aluminium profiles - with the need for soldering.
The model allows the use of additional compression connectors - in which case there is no need to solder the connector to the strip.
Dimensions 30 x 20mm.
| General information: | |
|---|---|
| Type of accessory/spare part: | Łącznik |
| Accessory: | tak |
| Voltage [V]: | 0-48 |
| Type: | Złączka trójnik "T" |
| Number of pins: | 4 |
| Current max. [A]: | 1.28 |
| Compatible with LED strips - width [mm]: | 10 |
| Width [mm]: | 30 |
| Height/depth [mm]: | 0.2 |
| Length [mm]: | 20 |
